Preservation of pancreatic endocrine and peri-islet exocrine capillary networks in type 2 diabetes
Alex M. Tollefson, Frank R. Marsico, Manami Hara
Alex M. Tollefson, Frank R. Marsico, Manami Hara
View: Text | PDF
Research Article Endocrinology Vascular biology

Preservation of pancreatic endocrine and peri-islet exocrine capillary networks in type 2 diabetes

  • Text
  • PDF
Abstract

Chronic hyperglycemia induces microvascular complications in patients with type 2 diabetes (T2D), particularly diabetic retinopathy, nephropathy, and neuropathy. We revisited the pancreatic vasculature to reexamine such damage in 3D. Using thick pancreatic tissue slices, we analyzed volumetric intraislet capillary density (vICD) and peri-islet volumetric exocrine capillary density (vECD) as well as interface capillary counts along the islet periphery to quantify vascular integration between the islets and surrounding acinar cells. Contrary to the previous reports, vICD was not homogeneous but highly heterogeneous across the five species studied (human, monkey, pig, ferret, and mouse), especially in smaller islets. vICD became less variable with increasing islet size, converging at approximately 20%. With this foundation of islet vascularization, pancreatic tissues from non-diabetic and T2D subjects consisting of 8 age- and sex-matched pairs (age range of 35–65 years with various duration: 0–15 years) were examined. Strikingly, no significant differences in microvascular density were found; mean vICD and mean vECD were nearly equivalent between the groups. Capillary integration with respect to islet size was comparable. These findings suggest that integrated pancreatic blood flow with robust crosstalk between the endocrine and exocrine pancreas may facilitate microvascular preservation in T2D via local distribution of insulin.

Authors

Alex M. Tollefson, Frank R. Marsico, Manami Hara

×

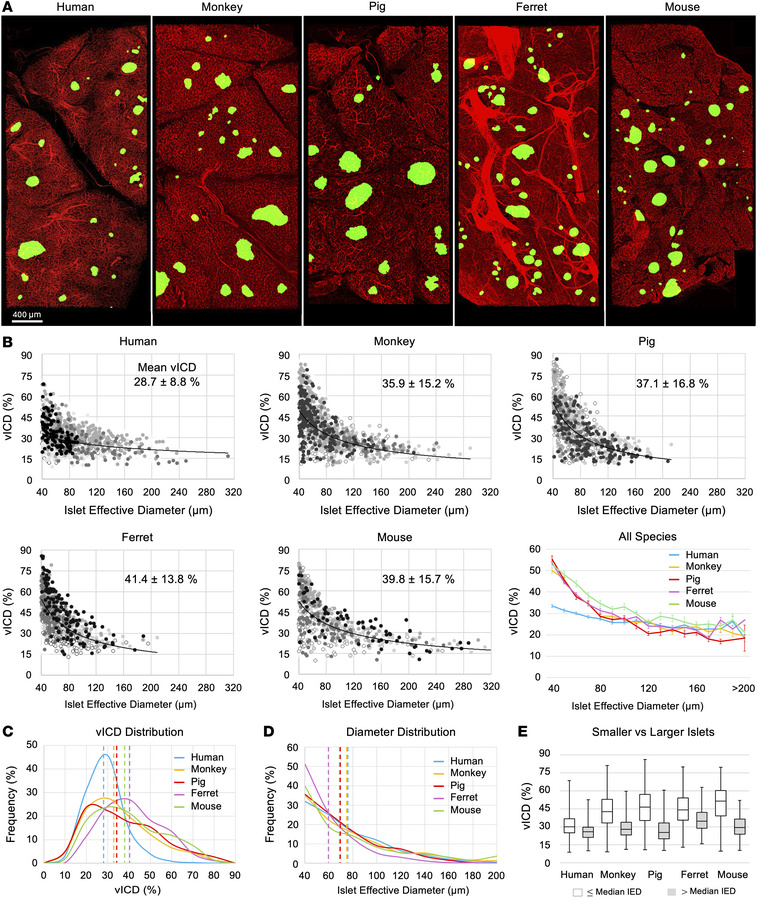

Figure 3

Characterization of vICD in various species.

Options: View larger image (or click on image) Download as PowerPoint
Characterization of vICD in various species.
(A) Representative fluoresc...
(A) Representative fluorescent 3D images from each species analyzed. Islet cell marker (HPi1) or insulin (green), CD31 or tomato lectin (red). Scale bar: 400 μm. (B) Percentage vICD plotted against islet effective diameter (μm). Combined data from 5 individuals sampled (indicated as 5 shades of circles from black to white). Bottom right: Mean vICD across islet diameter in all species. All animal species exhibited significantly greater mean vICD compared with humans (P < 0.001, effect size 0.60–1.14). (C) Interspecies comparison of vICD density distribution. Median vICD for each species is indicated by the dashed lines. (D) Interspecies comparison of islet effective diameter distribution with median diameter values also indicated by dashed lines. Legends are included in the plots. (E) The difference in vICD between islets with islet effective diameter (IED) smaller and greater than median islet effective diameter of each species. Median vICD is shown. Mean vICD was significantly different between smaller and larger islets in all 5 species (P < 0.001, effect size 0.46–1.41).
