ATP7A-fibulin-4 complex delivers copper in the Golgi to activate LOX in renal fibrosis
Wenqian Zhou, Yan Zheng, Yuqing Liu, Jing Liu, Yiguo Liu, Yangyang Niu, Ying Yu, Xiaoqin Zhang, Yingying Zhang, Chen Yu
Wenqian Zhou, Yan Zheng, Yuqing Liu, Jing Liu, Yiguo Liu, Yangyang Niu, Ying Yu, Xiaoqin Zhang, Yingying Zhang, Chen Yu
View: Text | PDF
Research Article Cell biology Nephrology

ATP7A-fibulin-4 complex delivers copper in the Golgi to activate LOX in renal fibrosis

  • Text
  • PDF
Abstract

Lysyl oxidase (LOX) is a copper-dependent monoamine oxidase whose primary function is the covalent cross-linking of collagen and elastin in the extracellular matrix (ECM). However, the regulation of LOX activity in renal fibrosis is not well understood. Here, our study showed that (a) LOX expression and ECM cross-linking were markedly increased in fibrotic kidneys. Reduction of copper levels in the Golgi apparatus by treatment with the copper chelator tetrathiomolybdate or by specific knockdown of copper transporter 1 (CTR1) decreased LOX activity and ameliorated renal fibrosis. (b) Overexpression of ATP7A caused an elevation of copper ions within the Golgi apparatus, resulting in increased LOX activity and enhanced ECM crosslinking, thereby promoting the progression of renal fibrosis. Knockdown of ATP7A showed the opposite result. (c) FBLN4 was essential for the ATP7A-mediated transfer of copper to LOX and formed a ternary complex of ATP7A-FBLN4-LOX. Our research revealed that high ATP7A expression induced copper overload in the Golgi apparatuses. FBLN4 then assisted ATP7A in transporting this excess copper to LOX, resulting in LOX overactivation. This, in turn, catalyzed the cross-linking of ECM components, thereby accelerating renal fibrosis.

Authors

Wenqian Zhou, Yan Zheng, Yuqing Liu, Jing Liu, Yiguo Liu, Yangyang Niu, Ying Yu, Xiaoqin Zhang, Yingying Zhang, Chen Yu

×

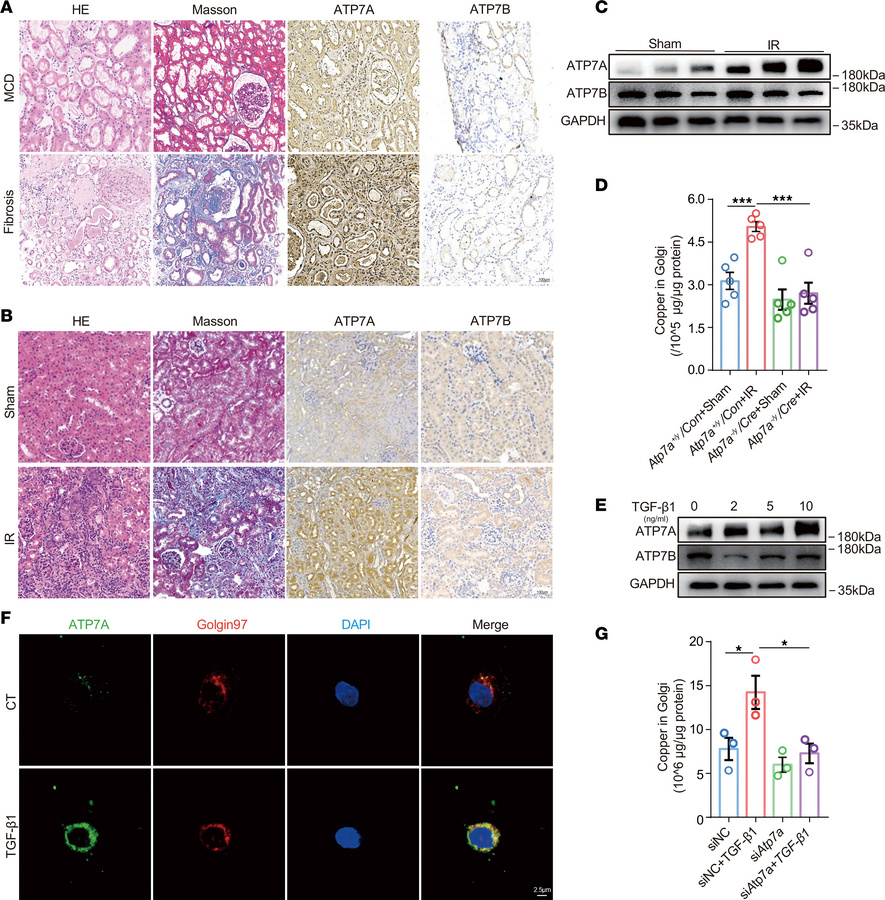

Figure 4

ATP7A mediates the increase of Golgi copper level in renal fibrosis.

Options: View larger image (or click on image) Download as PowerPoint
ATP7A mediates the increase of Golgi copper level in renal fibrosis.
(A)...
(A) Representative images of immunohistochemical staining with ATP7A, ATP7B, H&E, and Masson’s trichrome in kidney sections from patients with and without renal fibrosis (n = 5). Original magnification, ×200. Scale bar: 100 μm. (B) Representative images of immunohistochemical staining of ATP7A, ATP7B, H&E, and Masson’s trichrome in kidney sections from renal fibrosis models induced by IR (n = 5). Original magnification, ×200. Scale bar: 100 μm. (C) Western immunoblots analysis of ATP7A and ATP7B expression in mouse kidneys (n = 5). (D) The copper level was detected in the Golgi apparatus of kidneys collected from IR-induced mice with or without Atp7a downregulation (n = 5). (E) Western immunoblots analysis of ATP7A and ATP7B expression in NRK-52E cells treated with TGF-β1 (n = 3). (F) The colocalization of ATP7A with the Golgi apparatus was analyzed by immunofluorescent costaining in NRK-52E cells without (CT) or with TGF-β1 treatment (n = 3). Original magnification, ×1,000. Scale bar: 2.5 μm. (G) The copper level was detected in the Golgi apparatus of NRK-52E cells treated with TGF-β1 after downregulation of Atp7a (n = 3). Data are shown as the mean ± SEM. Statistics used included 1-way ANOVA. *P < 0.05, ***P < 0.001.
