Identification and regulation of circulating tumor-TCR-matched cytotoxic CD4+ lymphocytes by KLRG1 in bladder cancer
Serena S. Kwek, Hai Yang, Tony Li, Arielle Ilano, Eric D. Chow, Li Zhang, Hewitt Chang, Diamond Luong, Averey Lea, Matthew Clark, Alec Starzinski, Yimin Shi, Elizabeth McCarthy, Sima Porten, Maxwell V. Meng, Chun Jimmie Ye, Lawrence Fong, David Y. Oh
Serena S. Kwek, Hai Yang, Tony Li, Arielle Ilano, Eric D. Chow, Li Zhang, Hewitt Chang, Diamond Luong, Averey Lea, Matthew Clark, Alec Starzinski, Yimin Shi, Elizabeth McCarthy, Sima Porten, Maxwell V. Meng, Chun Jimmie Ye, Lawrence Fong, David Y. Oh
View: Text | PDF
Research Article Clinical trials Immunology Oncology

Identification and regulation of circulating tumor-TCR-matched cytotoxic CD4+ lymphocytes by KLRG1 in bladder cancer

  • Text
  • PDF
Abstract

While cytotoxic CD4+ tumor-infiltrating lymphocytes have anticancer activity in patients, whether these can be noninvasively monitored and how these are regulated remains obscure. By matching single cells with T cell receptors (TCRs) in tumor and blood of patients with bladder cancer, we identified distinct pools of tumor-matching cytotoxic CD4+ T cells in the periphery directly reflecting the predominant antigenic specificities of intratumoral CD4+ tumor-infiltrating lymphocytes. On one hand, the granzyme B–expressing (GZMB-expressing) cytotoxic CD4+ subset proliferated in blood in response to PD-1 blockade but was separately regulated by the killer cell lectin-like receptor G1 (KLRG1), which inhibited their killing by interacting with E-cadherin. Conversely, a clonally related, GZMK-expressing circulating CD4+ population demonstrated basal proliferation and a memory phenotype that may result from activation of GZMB+ cells, but was not directly mobilized by PD-1 blockade. As KLRG1 marked the majority of circulating tumor-TCR-matched cytotoxic CD4+ T cells, this work nominates KLRG1 as a means to isolate them from blood and provide a window into intratumoral CD4+ recognition, as well as a putative regulatory receptor to mobilize the cytolytic GZMB+ subset for therapeutic benefit. Our findings also underscore ontogenic relationships of GZMB- and GZMK-expressing populations and the distinct cues that regulate their activity.

Authors

Serena S. Kwek, Hai Yang, Tony Li, Arielle Ilano, Eric D. Chow, Li Zhang, Hewitt Chang, Diamond Luong, Averey Lea, Matthew Clark, Alec Starzinski, Yimin Shi, Elizabeth McCarthy, Sima Porten, Maxwell V. Meng, Chun Jimmie Ye, Lawrence Fong, David Y. Oh

×

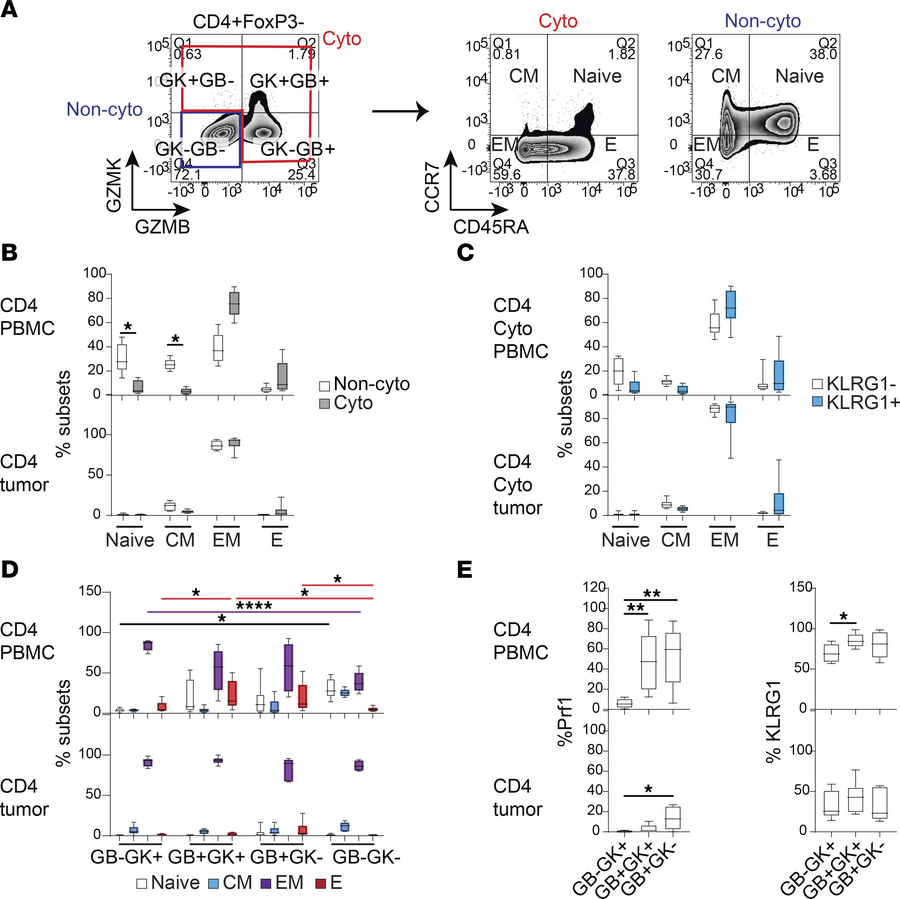

Figure 5

Developmental stages of different cytotoxic cell types in PBMCs and bladder tumors.

Options: View larger image (or click on image) Download as PowerPoint
Developmental stages of different cytotoxic cell types in PBMCs and blad...
(A) Flow cytometry was carried out on 8 PBMC samples and 6 tumors from standard-of-care patients with bladder cancer. Representative flow cytometry plots showing CD4+FoxP3– T cells expressing GZMB and GZMK, and Cyto and Non-Cyto cells were further gated into Naive, CM, EM, and E based on expression of CCR7 and CD45RA. All graphs in this figure are box-and-whisker plots for CD4+ T cells from PBMCs and tumors showing (B) proportion of developmental subsets in Cyto and Non-cyto cells; (C) proportion of developmental subsets in KLRG1– and KLRG1+ cytotoxic cells; (D) proportion of developmental subsets in each cytotoxic subtype (red, purple, and black lines indicate significant pairwise comparison of proportion of E, EM, or Naive subsets, respectively, between cytotoxic subtypes); and (E) percentage perforin+ (Prf1+) and KLRG1+ of each cytotoxic subtype. Comparison of paired cell subsets was performed using Friedman’s test with Dunn’s multiple-comparison test. *P < 0.05; **P < 0.01; ****P < 0.0001. Corresponding plots for CD8+ cells are shown in Supplemental Figure 4.
