Mutations in EPHB4 cause human venous valve aplasia
Oliver Lyons, … , Prakash Saha, Alberto Smith
Oliver Lyons, … , Prakash Saha, Alberto Smith
Published August 17, 2021
Citation Information: JCI Insight. 2021;6(18):e140952. https://doi.org/10.1172/jci.insight.140952.
View: Text | PDF
Research Article Angiogenesis Development

Mutations in EPHB4 cause human venous valve aplasia

  • Text
  • PDF
Abstract

Venous valve (VV) failure causes chronic venous insufficiency, but the molecular regulation of valve development is poorly understood. A primary lymphatic anomaly, caused by mutations in the receptor tyrosine kinase EPHB4, was recently described, with these patients also presenting with venous insufficiency. Whether the venous anomalies are the result of an effect on VVs is not known. VV formation requires complex “organization” of valve-forming endothelial cells, including their reorientation perpendicular to the direction of blood flow. Using quantitative ultrasound, we identified substantial VV aplasia and deep venous reflux in patients with mutations in EPHB4. We used a GFP reporter in mice to study expression of its ligand, ephrinB2, and analyzed developmental phenotypes after conditional deletion of floxed Ephb4 and Efnb2 alleles. EphB4 and ephrinB2 expression patterns were dynamically regulated around organizing valve-forming cells. Efnb2 deletion disrupted the normal endothelial expression patterns of the gap junction proteins connexin37 and connexin43 (both required for normal valve development) around reorientating valve-forming cells and produced deficient valve-forming cell elongation, reorientation, polarity, and proliferation. Ephb4 was also required for valve-forming cell organization and subsequent growth of the valve leaflets. These results uncover a potentially novel cause of primary human VV aplasia.

Authors

Oliver Lyons, James Walker, Christopher Seet, Mohammed Ikram, Adam Kuchta, Andrew Arnold, Magda Hernández-Vásquez, Maike Frye, Gema Vizcay-Barrena, Roland A. Fleck, Ashish S. Patel, Soundrie Padayachee, Peter Mortimer, Steve Jeffery, Siren Berland, Sahar Mansour, Pia Ostergaard, Taija Makinen, Bijan Modarai, Prakash Saha, Alberto Smith

×

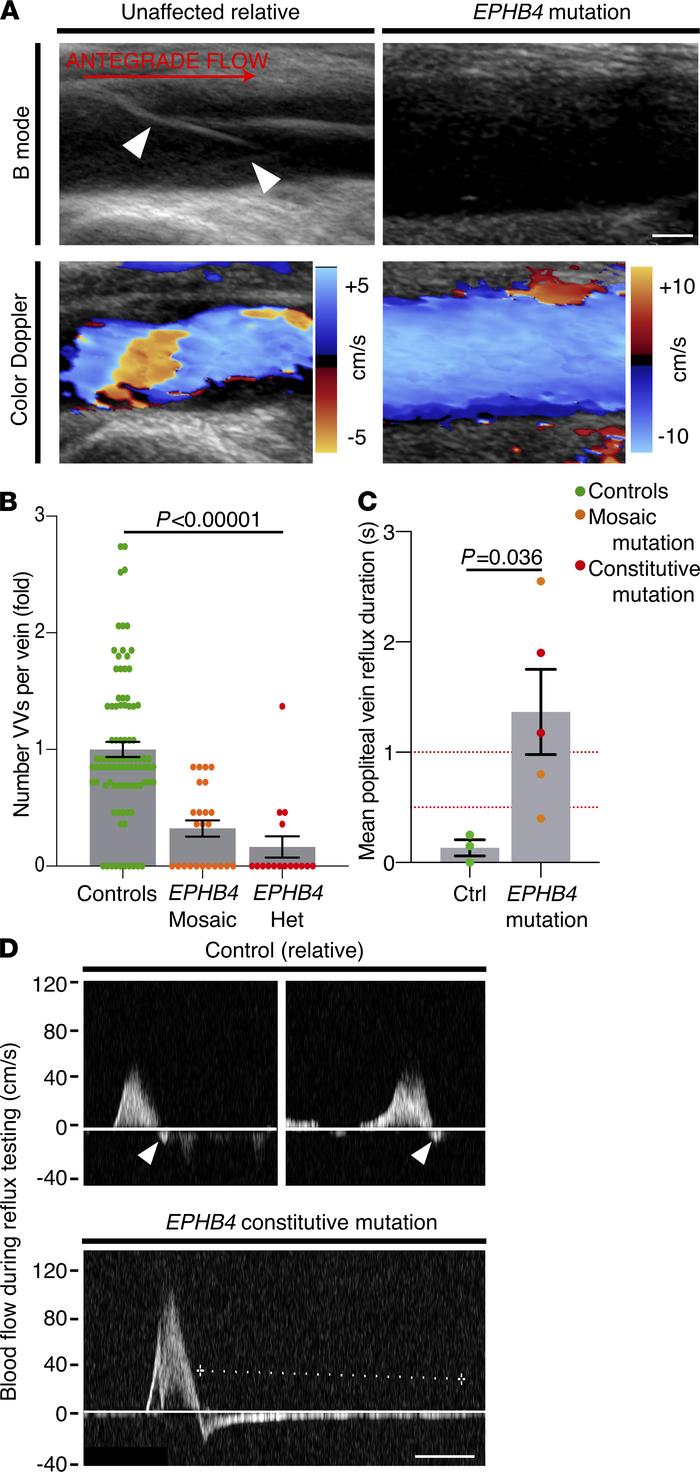

Figure 1

EPHB4 mutations cause human VV failure.

Options: View larger image (or click on image) Download as PowerPoint
EPHB4 mutations cause human VV failure.
(A) VVs (arrowheads) were readil...
(A) VVs (arrowheads) were readily identifiable in the veins of controls, including an unaffected relative, but were rare in patients with a mutation in EPHB4. B-mode and color Doppler images are shown of the popliteal vein. Blood flow left to right, velocity indicated by color scale. Scale bar: 2 mM. (B) Fewer VVs per vein were seen in participants with mosaic or constitutive (heterozygous) EPHB4 mutation (P = 1.7 × 10–11, 1-way ANOVA). n = 92 veins in 13 controls, and 40 veins in 5 patients with EPHB4 mutation (mosaic or constitutive). Data points represent individual veins. (C) Popliteal (deep) venous reflux was identified in mosaic and constitutive carriers of EPHB4 mutations (P = 0.036, Mann-Whitney U test). Blood velocity ≥ 0.5 second indicates reflux and ≥ 1 seconds indicates severe reflux (red dotted lines). Data points represent mean of left and right popliteal reflux duration for each individual. (D) Representative blood velocity in the popliteal vein during reflux testing is shown for an unaffected relative (with no significant reflux, arrowheads) and a patient carrying an EPHB4 mutation, demonstrating significant deep venous reflux (dotted line = 2.14 seconds). Scale bar: 500 ms). Throughout all figures, antegrade blood flow is from left to right. Data are shown as mean ± SEM. VVs, venous valves; Het, heterozygous.
