Injury-induced actin cytoskeleton reorganization in podocytes revealed by super-resolution microscopy
Hani Y. Suleiman, … , Andrey S. Shaw, Jeffrey H. Miner
Hani Y. Suleiman, … , Andrey S. Shaw, Jeffrey H. Miner
Published August 17, 2017
Citation Information: JCI Insight. 2017;2(16):e94137. https://doi.org/10.1172/jci.insight.94137.
View: Text | PDF
Research Article Cell biology Nephrology

Injury-induced actin cytoskeleton reorganization in podocytes revealed by super-resolution microscopy

  • Text
  • PDF
Abstract

The architectural integrity of tissues requires complex interactions, both between cells and between cells and the extracellular matrix. Fundamental to cell and tissue homeostasis are the specific mechanical forces conveyed by the actomyosin cytoskeleton. Here we used super-resolution imaging methods to visualize the actin cytoskeleton in the kidney glomerulus, an organized collection of capillaries that filters the blood to make the primary urine. Our analysis of both mouse and human glomeruli reveals a network of myosin IIA–containing contractile actin cables within podocyte cell bodies and major processes at the outer aspects of the glomerular tuft. These likely exert force on an underlying network of myosin IIA–negative, noncontractile actin fibers present within podocyte foot processes that function to both anchor the cells to the glomerular basement membrane and stabilize the slit diaphragm against the pressure of fluid flow. After injuries that disrupt the kidney filtration barrier and cause foot process effacement, the podocyte’s contractile actomyosin network relocates to the basolateral surface of the cell, manifesting as sarcomere-like structures juxtaposed to the basement membrane. Our findings suggest a new model of the podocyte actin cytoskeleton in health and disease and suggest the existence of novel mechanisms that regulate podocyte architecture.

Authors

Hani Y. Suleiman, Robyn Roth, Sanjay Jain, John E. Heuser, Andrey S. Shaw, Jeffrey H. Miner

×

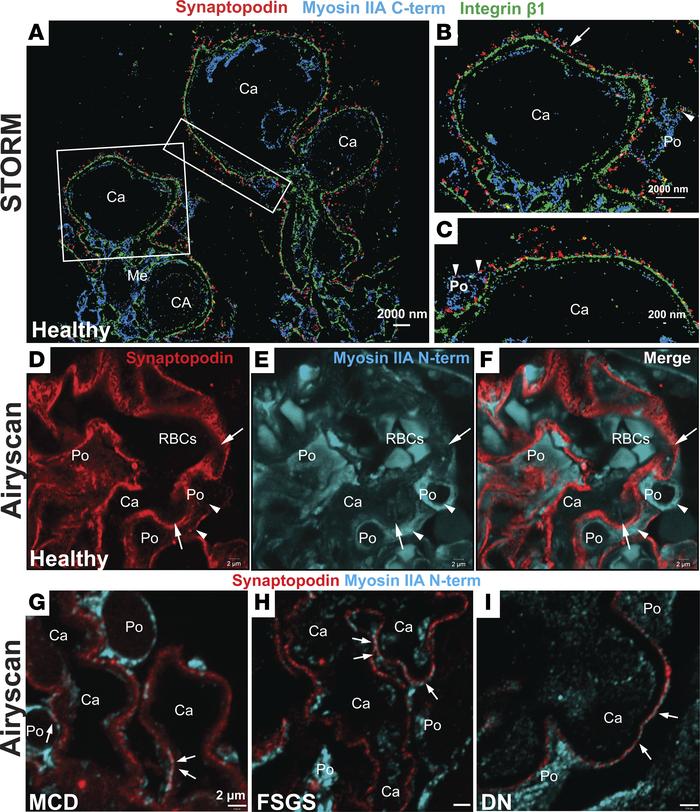

Figure 7

Myosin IIA is present in the human podocyte cell body and major processes but not in foot processes.

Options: View larger image (or click on image) Download as PowerPoint
Myosin IIA is present in the human podocyte cell body and major processe...
(A–C) Triple-color STORM images of a healthy human glomerulus stained for integrin β1 (green), synaptopodin (red), and myosin IIA (blue) show that while podocyte foot processes are labeled by synaptopodin (arrow in B), myosin IIA is primarily localized in the podocyte cell body and major processes (arrowheads in B and C). (D–F) A healthy human glomerulus stained for synaptopodin (red) and myosin IIA (blue) was imaged by Airyscan super-resolution microscopy. A capillary loop is covered by synaptopodin-positive processes (D) that are negative for myosin IIA (E) and (F). Myosin IIA is present in the podocyte cell body and the major processes (arrowheads), but very little myosin IIA staining overlaps with the finger-like synaptopodin staining (arrows). (G–I) Airyscan images of human kidney biopsies from patients with minimal change disease (G), focal segmental glomerulosclerosis (H), and diabetic nephropathy (I) labeled with antibodies against synaptopodin (red) and myosin IIA (blue) show the presence of sarcomere-like structures in injured podocytes (arrowheads). Scale bars: 2,000 nm (A, B, and D–I) and 200 nm (C). Po, podocyte; Ca, capillary; Me, mesangial cell; RBCs, red blood cells; MCD, minimal change disease; FSGS, focal segmental glomerulosclerosis; DN, diabetic nephropathy.
