FXR shapes an immunosuppressive microenvironment in PD-L1lo/– non-small cell lung cancer by upregulating HVEM
Xiaolong Xu, Bin Shang, Hancheng Wu, Xiuye Jin, Junren Wang, Jing Li, Daowei Li, Bin Liang, Xingguang Wang, Lili Su, Wenjie You, Shujuan Jiang
Xiaolong Xu, Bin Shang, Hancheng Wu, Xiuye Jin, Junren Wang, Jing Li, Daowei Li, Bin Liang, Xingguang Wang, Lili Su, Wenjie You, Shujuan Jiang
View: Text | PDF
Research Article Immunology Oncology

FXR shapes an immunosuppressive microenvironment in PD-L1lo/– non-small cell lung cancer by upregulating HVEM

  • Text
  • PDF
Abstract

Immune checkpoint therapy has changed cancer treatment, including non-small cell lung cancer (NSCLC). The unresponsiveness of PD-L1lo/– tumors to anti–PD-1/PD-L1 immunotherapy is attributed to alternative immune evasion mechanisms that remain elusive. We previously reported that farnesoid X receptor (FXR) was increased in PD-L1lo/– NSCLC. Herein, we found that immune checkpoint HVEM was positively correlated with FXR but inversely correlated with PD-L1 in NSCLC. HVEM was highly expressed in FXRhiPD-L1lo NSCLC. Consistently, clinically relevant FXR antagonist dose-dependently inhibited HVEM expression in NSCLC. FXR inhibited cytokine production and cytotoxicity of cocultured CD8+ T cells in vitro, and it shaped an immunosuppressive tumor microenvironment (TME) in mouse tumors in vivo through the HVEM/BTLA pathway. Clinical investigations show that the FXR/HVEM axis was associated with immunoevasive TME and inferior survival outcomes in patients with NSCLC. Mechanistically, FXR upregulated HVEM via transcriptional activation, intracellular Akt, Erk1/2 and STAT3 signals, and G1/S cycle progression in NSCLC cells. In vivo treatment experiments demonstrated that anti-BTLA immunotherapy reinvigorated antitumor immunity in TME, resulting in enhanced tumor inhibition and survival improvement in FXRhiPD-L1lo mouse Lewis lung carcinomas. In summary, our findings establish the FXR/HVEM axis as an immune evasion mechanism in PD-L1lo/– NSCLC, providing translational implications for future immunotherapy in this subgroup of patients.

Authors

Xiaolong Xu, Bin Shang, Hancheng Wu, Xiuye Jin, Junren Wang, Jing Li, Daowei Li, Bin Liang, Xingguang Wang, Lili Su, Wenjie You, Shujuan Jiang

×

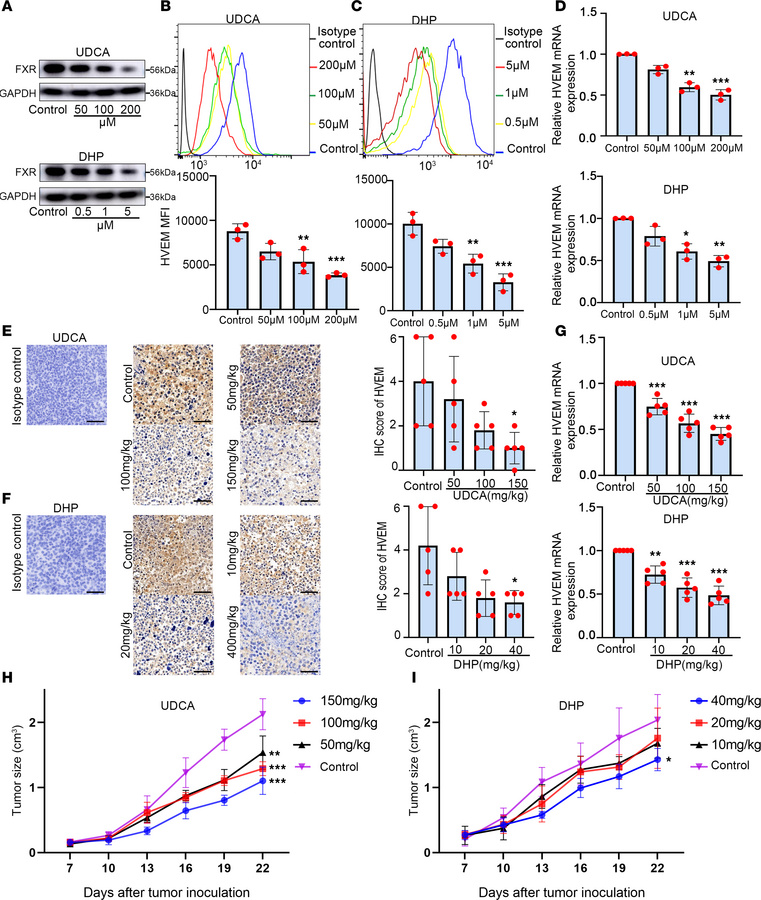

Figure 2

FXR antagonists dose-dependently inhibit HVEM expression in NSCLC.

Options: View larger image (or click on image) Download as PowerPoint
FXR antagonists dose-dependently inhibit HVEM expression in NSCLC.
A549 ...
A549 cells were treated with concentration gradients of UDCA (0, 50, 100, and 200 μM) and DHP (0, 0.5, 1, and 5 μM) for 48 h. (A) The protein levels of FXR in A549 cells were examined by Western blotting. (B and C) Representative histograms and mean fluorescence intensity (MFI) quantifications for HVEM membrane staining in A549 cells treated with UDCA (B) and DHP (C) were analyzed by flow cytometry. (D) Relative mRNA levels of HVEM in A549 cells were examined by q-PCR. β-Actin served as an internal control. C57BL/6 mice were inoculated s.c. with 1 × 106 LLC cells, and injected i.p. with increasing doses of UDCA (0, 50, 100, and 150 mg/kg) and DHP (0, 10, 20, and 40 mg/kg) every 3 days for 15 days when the tumor volume reached ~100 mm3. (E and F) Representative IHC images (magnification, ×200) and IHC score of HVEM expression in mouse LLC tumors treated with UDCA (E) and DHP (F) are shown. Nonspecific rabbit IgG was used as an isotype control antibody. Scale bar: 50 μm. (G) Relative mRNA levels of HVEM in mouse LLC tumors of each group were compared. (H and I) The tumor volume was monitored every 3 days after UDCA (H) and DHP (I) administration. Each experiment was conducted independently at least 3 times. Data are shown as mean ± SD from 3 biological replicates. For E–I, n = 5 mice/group. Statistical significance was assessed with 1-way ANOVA followed by Tukey’s post hoc test (B–D and G–I) or Kruskal-Wallis rank sum test followed by Dunnett’s post hoc test (E and F). *P < 0.05, **P < 0.01, ***P < 0.001, compared with control group.
