Live-cell imaging of human liver fibrosis using hepatic micro-organoids
Yuan Guan, … , Annika Enejder, Gary Peltz
Yuan Guan, … , Annika Enejder, Gary Peltz
Published December 10, 2024
Citation Information: JCI Insight. 2025;10(2):e187099. https://doi.org/10.1172/jci.insight.187099.
View: Text | PDF
Research Article Hepatology

Live-cell imaging of human liver fibrosis using hepatic micro-organoids

  • Text
  • PDF
Abstract

Due to the limitations of available in vitro systems and animal models, we lack a detailed understanding of the pathogenetic mechanisms of and have minimal treatment options for liver fibrosis. Therefore, we engineered a live-cell imaging system that assessed fibrosis in a human multilineage hepatic organoid in a microwell (i.e., microHOs). Transcriptomic analysis revealed that TGFB converted mesenchymal cells in microHOs into myofibroblast-like cells resembling those in fibrotic human liver tissue. When pro-fibrotic intracellular signaling pathways were examined, the antifibrotic effect of receptor-specific tyrosine kinase inhibitors was limited to the fibrosis induced by the corresponding growth factor, which indicates their antifibrotic efficacy would be limited to fibrotic diseases solely mediated by that growth factor. Based upon transcriptomic and transcription factor activation analyses in microHOs, glycogen synthase kinase 3β and p38 MAPK inhibitors were identified as potential new broad-spectrum therapies for liver fibrosis. Other new therapies could subsequently be identified using the microHO system.

Authors

Yuan Guan, Zhuoqing Fang, Angelina Hu, Sarah Roberts, Meiyue Wang, Wenlong Ren, Patrik K. Johansson, Sarah C. Heilshorn, Annika Enejder, Gary Peltz

×

Figure 3

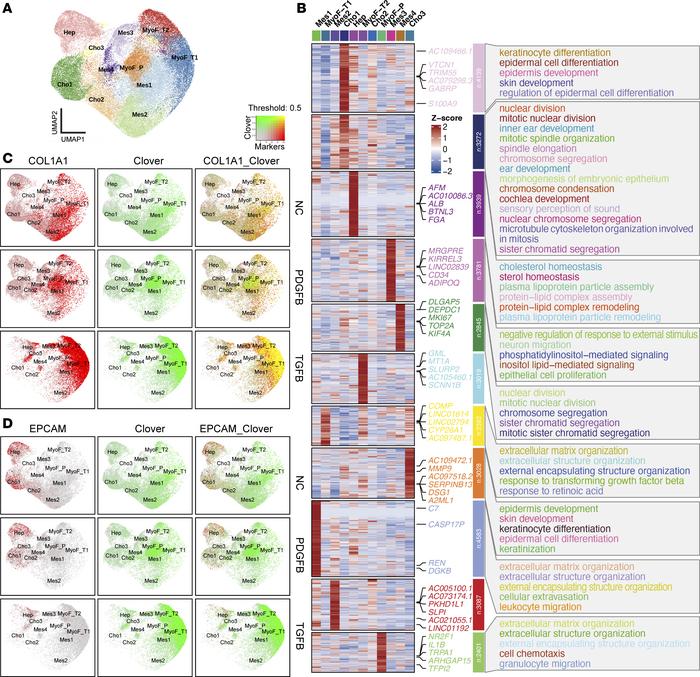

scRNA-Seq profiles microHOs and reveals the Clover+ population represents mesenchymal cells.

Options: View larger image (or click on image) Download as PowerPoint
scRNA-Seq profiles microHOs and reveals the Clover+ population represent...
(A) A combined sample uniform manifold approximation and projection (UMAP) plot shows the 11 cell clusters identified in day 21 control (NC), PDGFB-treated (P), and TGFB-treated (T) microHO cultures. (B) Heatmaps show the differentially expressed genes and the annotated GO pathways identified for each cluster. (C and D) These feature plots show the level of expression of COL1A1 and Clover mRNAs (C) or EPCAM and Clover mRNAs (D) in the UMAP plot shown in A. As shown in the color threshold diagram, dot colors represent level of mRNA expression. COL1A1 and Clover mRNAs have an overlapping expression pattern; they are predominantly expressed in myofibroblasts and in mesenchymal cells. In contrast, EPCAM mRNA is expressed in the hepatocyte and cholangiocyte clusters, and its expression does not overlap with that of Clover mRNA.
