Cure of syngeneic carcinomas with targeted IL-12 through obligate reprogramming of lymphoid and myeloid immunity
Youji Hong, Yvette Robbins, Xinping Yang, Wojciech K. Mydlarz, Anastasia Sowers, James B. Mitchell, James L. Gulley, Jeffrey Schlom, Sofia R. Gameiro, Cem Sievers, Clint T. Allen
Youji Hong, Yvette Robbins, Xinping Yang, Wojciech K. Mydlarz, Anastasia Sowers, James B. Mitchell, James L. Gulley, Jeffrey Schlom, Sofia R. Gameiro, Cem Sievers, Clint T. Allen
View: Text | PDF
Research Article Immunology Oncology

Cure of syngeneic carcinomas with targeted IL-12 through obligate reprogramming of lymphoid and myeloid immunity

  • Text
  • PDF
Abstract

Therapeutic IL-12 has demonstrated the ability to reduce local immune suppression in preclinical models, but clinical development has been limited by severe inflammation-related adverse events with systemic administration. Here, we show that potent immunologic tumor control of established syngeneic carcinomas can be achieved by i.t. administration of a tumor-targeted IL-12 antibody fusion protein (NHS–rmIL-12) using sufficiently low doses to avoid systemic toxicity. Single-cell transcriptomic analysis and ex vivo functional assays of NHS–rmIL-12–treated tumors revealed reinvigoration and enhanced proliferation of exhausted CD8+ T lymphocytes, induction of Th1 immunity, and a decrease in Treg number and suppressive capacity. Similarly, myeloid cells transitioned toward inflammatory phenotypes and displayed reduced suppressive capacity. Cell type–specific IL-12 receptor–KO BM chimera studies revealed that therapeutic modulation of both lymphoid and myeloid cells is required for maximum treatment effect and tumor cure. Study of single-cell data sets from human head and neck carcinomas revealed IL-12 receptor expression patterns similar to those observed in murine tumors. These results describing the diverse mechanisms underlying tumor-directed IL-12–induced antitumor immunity provide the preclinical rationale for the clinical study of i.t. NHS–IL-12.

Authors

Youji Hong, Yvette Robbins, Xinping Yang, Wojciech K. Mydlarz, Anastasia Sowers, James B. Mitchell, James L. Gulley, Jeffrey Schlom, Sofia R. Gameiro, Cem Sievers, Clint T. Allen

×

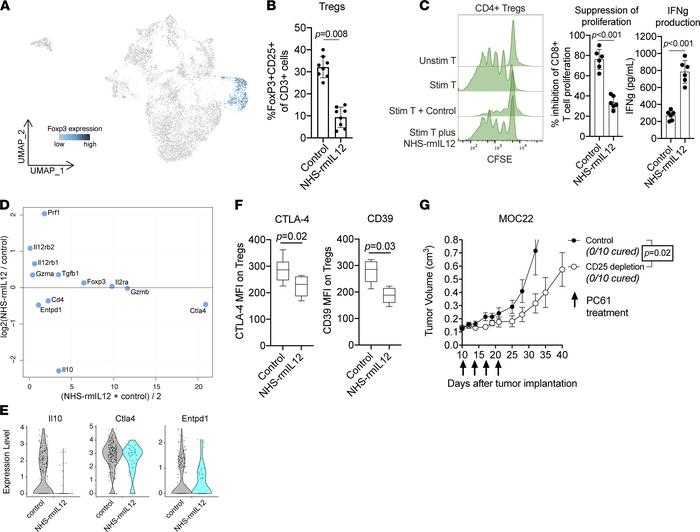

Figure 5

NHS–rmIL-12 decreases the frequency and suppressive capacity of Tregs.

Options: View larger image (or click on image) Download as PowerPoint
NHS–rmIL-12 decreases the frequency and suppressive capacity of Tregs.
(...
(A) UMAP embedding of T lymphocytes colored by expression of FoxP3. (B) Quantification of FoxP3+ and CD25+ CD3+ T lymphocytes from tumors treated with NHS–rmIL-12 or PBS control measured by flow cytometry. P value determined by Student’s t test. (C) CD4+ and CD25+ cells were isolated from tumors treated with NHS–rmIL-12 or PBS control via magnetic selection and cocultured with CFSE-labeled WT T lymphocytes stimulated with CD3/CD28 antibodies. Representative CFSE histograms are shown, T lymphocyte proliferation was measured by flow cytometry, and IFN-γ production was measured by ELISA. P value determined by Student’s t test. (D) Dot plot showing fold change in average expression of Treg-related genes, comparing Tregs from NHS–rmIL-12– and control-treated tumors, over mean gene expression. (E) Violin plots of CTLA4, Entpd1, and IL10 expression in CD4+, FoxP3+, and CD25+ cells from tumors treated with NHS–rmIL-12 or PBS control. (F) Forty-eight hours after treatment with NHS–rmIL-12 or PBS control, MFI of cell surface CTLA-4 or CD39 on FoxP3+ and CD25+ CD4+ T lymphocytes was measured by flow cytometry. P value determined by Student’s t test. (G) Mice (n = 10/group) bearing established MOC22 tumors were treated with 4 doses of the anti-CD25 mAb clone PC61 (200 μg) or isotype control (rat IgG1) and followed for tumor growth. Significance determined by 1-way ANOVA.
