Distinct pathogenic roles for resident and monocyte-derived macrophages in lupus nephritis
Nathan Richoz, Zewen K. Tuong, Kevin W. Loudon, Eduardo Patiño-Martínez, John R. Ferdinand, Jorge Romo-Tena, Anaïs Portet, Kathleen R. Bashant, Emeline Thevenon, Francesca Rucci, Thomas Hoyler, Tobias Junt, Mariana J. Kaplan, Richard M. Siegel, Menna R. Clatworthy
Nathan Richoz, Zewen K. Tuong, Kevin W. Loudon, Eduardo Patiño-Martínez, John R. Ferdinand, Jorge Romo-Tena, Anaïs Portet, Kathleen R. Bashant, Emeline Thevenon, Francesca Rucci, Thomas Hoyler, Tobias Junt, Mariana J. Kaplan, Richard M. Siegel, Menna R. Clatworthy
View: Text | PDF | Corrigendum
Research Article Immunology

Distinct pathogenic roles for resident and monocyte-derived macrophages in lupus nephritis

  • Text
  • PDF
Abstract

Lupus nephritis is a serious complication of systemic lupus erythematosus, mediated by IgG immune complex (IC) deposition in kidneys, with limited treatment options. Kidney macrophages are critical tissue sentinels that express IgG-binding Fcγ receptors (FcγRs), with previous studies identifying prenatally seeded resident macrophages as major IC responders. Using single-cell transcriptomic and spatial analyses in murine and human lupus nephritis, we sought to understand macrophage heterogeneity and subset-specific contributions in disease. In lupus nephritis, the cell fate trajectories of tissue-resident (TrMac) and monocyte-derived (MoMac) kidney macrophages were perturbed, with disease-associated transcriptional states indicating distinct pathogenic roles for TrMac and MoMac subsets. Lupus nephritis–associated MoMac subsets showed marked induction of FcγR response genes, avidly internalized circulating ICs, and presented IC-opsonized antigen. In contrast, lupus nephritis–associated TrMac subsets demonstrated limited IC uptake, but expressed monocyte chemoattractants, and their depletion attenuated monocyte recruitment to the kidney. TrMacs also produced B cell tissue niche factors, suggesting a role in supporting autoantibody-producing lymphoid aggregates. Extensive similarities were observed with human kidney macrophages, revealing cross-species transcriptional disruption in lupus nephritis. Overall, our study suggests a division of labor in the kidney macrophage response in lupus nephritis, with treatment implications — TrMacs orchestrate leukocyte recruitment while MoMacs take up and present IC antigen.

Authors

Nathan Richoz, Zewen K. Tuong, Kevin W. Loudon, Eduardo Patiño-Martínez, John R. Ferdinand, Jorge Romo-Tena, Anaïs Portet, Kathleen R. Bashant, Emeline Thevenon, Francesca Rucci, Thomas Hoyler, Tobias Junt, Mariana J. Kaplan, Richard M. Siegel, Menna R. Clatworthy

×

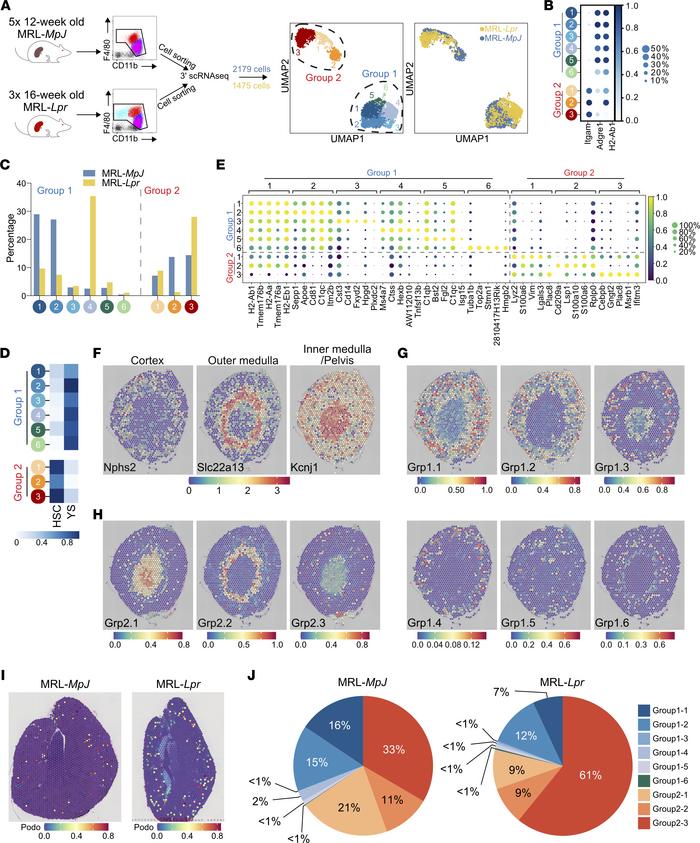

Figure 2

Lupus nephritis–associated macrophage heterogeneity at single-cell resolution.

Options: View larger image (or click on image) Download as PowerPoint
Lupus nephritis–associated macrophage heterogeneity at single-cell resol...
(A) Illustration of single-cell experiment setup (left panels) and uniform manifold approximation and projection (UMAP) embedding of 2,179 macrophages from MRL-MpJ and 1,475 macrophages from MRL-Lpr mice (right panels). (B) Mean expression dot plot of genes Itgam (CD11b), Adgre1 (F4/80), and H2-Ab1 (MHCII). (C) Proportion of cells found in each cluster and mouse strain. (D) Heatmap of mean AUCell enrichment of F4/80hi/lo gene sets, corresponding to yolk sac (YS) versus hematopoietic stem cell (HSC) lineage. (E) Mean expression dot plot of top 5 significant marker genes for each MNP cluster. Marker genes were identified using Wilcoxon rank sum test, and P (adj) < 0.05 was considered statistically significant. (F) Spatial expression of markers used to delineate the anatomical regions in Visium Spatial Gene Expression data of C57BL/6 kidney sections (Kcnj1 — pelvis, Slc22a13 — proximal tubules, and Nphs2 — glomeruli). (G) Spatial transcriptomics of group 1 macrophage signatures in C57BL/6 murine kidneys with annotated scRNA-Seq data above. Each spot/voxel denotes a prediction score of 0–1 for the location of each of the macrophage subgroups. (H) Spatial transcriptomics (ST) of group 2 macrophage signatures in C57BL/6 murine kidneys with annotated scRNA-Seq data above. Each spot/voxel denotes a prediction score of 0–1 for the location of each of the macrophage subgroups. (I) ST of podocyte signature in MRL-MpJ (left) and MRL-Lpr (right) kidneys to identify glomerulus-containing spots/voxels. (J) Average proportion of each macrophage subset signature in spots/voxels identified in I in the MRL-MpJ (left) and MRL-Lpr (right) kidneys.
