Dissecting the molecular control of immune cell accumulation in the inflamed joint
Catriona T. Prendergast, Robert A. Benson, Hannah E. Scales, Caio Santos Bonilha, John J. Cole, Iain McInnes, James M. Brewer, Paul Garside
Catriona T. Prendergast, Robert A. Benson, Hannah E. Scales, Caio Santos Bonilha, John J. Cole, Iain McInnes, James M. Brewer, Paul Garside
View: Text | PDF
Resource and Technical Advance Inflammation

Dissecting the molecular control of immune cell accumulation in the inflamed joint

  • Text
  • PDF
Abstract

Mechanisms governing entry and exit of immune cells into and out of inflamed joints remain poorly understood. We sought herein to identify the key molecular pathways regulating such migration. Using murine models of inflammation in conjunction with mice expressing a photoconvertible fluorescent protein, we characterized the migration of cells from joints to draining lymph nodes and performed RNA-Seq analysis on isolated cells, identifying genes associated with migration and retention. We further refined the gene list to those specific for joint inflammation. RNA-Seq data revealed pathways and genes previously highlighted as characteristic of rheumatoid arthritis in patient studies, validating the methodology. Focusing on pathways associated with cell migration, adhesion, and movement, we identified genes involved in the retention of immune cells in the inflamed joint, namely junctional adhesion molecule A (JAM-A), and identified a role for such molecules in T cell differentiation in vivo. Thus, using a combination of cell-tracking approaches and murine models of inflammatory arthritis, we identified genes, pathways, and anatomically specific tissue signatures regulating cell migration in a variety of inflamed sites. This skin- and joint-specific data set will be an invaluable resource for the identification of therapeutic targets for arthritis and other inflammatory disorders.

Authors

Catriona T. Prendergast, Robert A. Benson, Hannah E. Scales, Caio Santos Bonilha, John J. Cole, Iain McInnes, James M. Brewer, Paul Garside

×

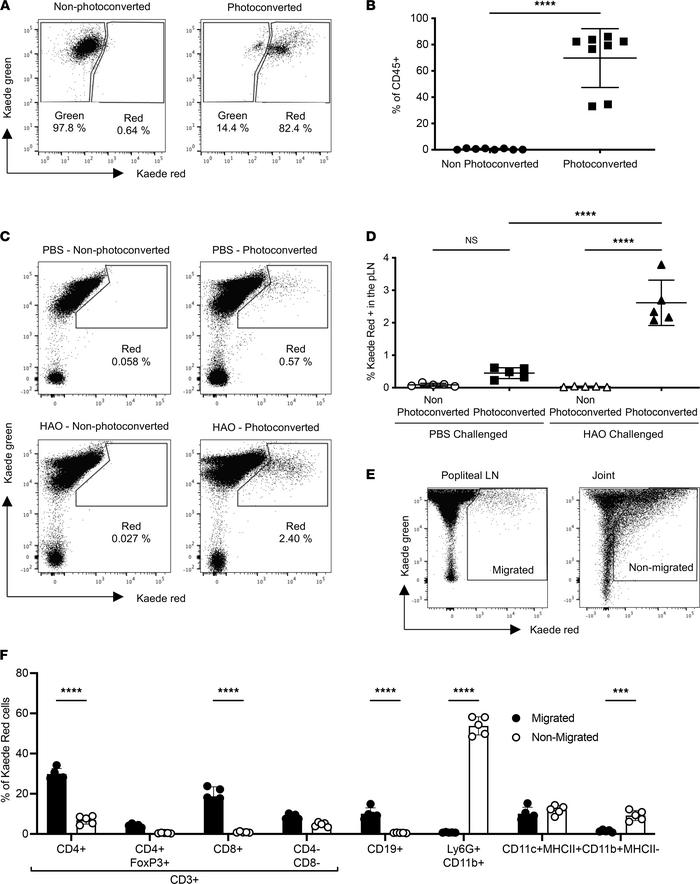

Figure 1

After HAO challenge, a significant population of cells migrate out of the inflamed joint to the popliteal lymph nodes.

Options: View larger image (or click on image) Download as PowerPoint
After HAO challenge, a significant population of cells migrate out of th...
Inflammatory arthritis was induced in female Kaede recipient mice; inflamed joints were photoconverted by exposure to UV light for a total of 30 seconds on day 3 after HAO challenge. (A) Representative flow cytometry plots showing CD45+ cells recovered from inflamed joints highlighting Kaede green versus red in non-photoconverted and photoconverted HAO-challenged mice euthanized immediately after photoconversion. (B) Quantitative analysis of extent of photoconversion showing the percentage of Kaede red+ cells. Statistical differences between the treatment groups were determined using unpaired 2-tailed t test; n = 8. (C) Representative flow cytometry plots showing Kaede green versus red in CD45+ cells recovered from the popliteal lymph nodes (pLNs) of PBS- or HAO-challenged mice at 24 hours after photoconversion. Cells were previously gated on lymphocytes, single cells, viable cells, and CD45+ cells. (D) Quantitative analysis of the percentage of Kaede red+ cells in the pLNs from not photoconverted or photoconverted mice after PBS or HAO challenge. Statistical differences determined using 1-way ANOVA with Tukey’s multiple-comparison test; n = 5. (E) Representative flow cytometry plots showing Kaede green versus red in the pLNs and joints of HAO-challenged mice using the OVA-RA model. Gates represent the population of Kaede red+ cells that were later sorted via FACS for RNA-Seq analysis. (F) Comparison of the cellular composition of the 2 Kaede red+ populations: CD45+Kaede red+ migrated cells from the inflamed joint and CD45+Kaede red+ nonmigrated cells still within the inflamed joint. Statistical differences between the treatment groups were determined using 2-way ANOVA with Holm-Šídák multiple-comparison test; n = 5. Data are representative of 3 separate experiments; each symbol represents an individual animal; mean ± SD shown. ***P < 0.001, ****P < 0.0001. HAO, heat-aggregated ovalbumin.
