The value of genotypic and imaging information to predict functional and structural outcomes in ADPKD
Sravanthi Lavu, Lisa E. Vaughan, Sarah R. Senum, Timothy L. Kline, Arlene B. Chapman, Ronald D. Perrone, Michal Mrug, William E. Braun, Theodore I. Steinman, Frederic F. Rahbari-Oskoui, Godela M. Brosnahan, Kyongtae T. Bae, Douglas Landsittel, Fouad T. Chebib, Alan S.L. Yu, Vicente E. Torres, the HALT PKD and CRISP Study Investigators, Peter C. Harris
Sravanthi Lavu, Lisa E. Vaughan, Sarah R. Senum, Timothy L. Kline, Arlene B. Chapman, Ronald D. Perrone, Michal Mrug, William E. Braun, Theodore I. Steinman, Frederic F. Rahbari-Oskoui, Godela M. Brosnahan, Kyongtae T. Bae, Douglas Landsittel, Fouad T. Chebib, Alan S.L. Yu, Vicente E. Torres, the HALT PKD and CRISP Study Investigators, Peter C. Harris
View: Text | PDF
Clinical Research and Public Health Genetics Nephrology

The value of genotypic and imaging information to predict functional and structural outcomes in ADPKD

  • Text
  • PDF
Abstract

BACKGROUND A treatment option for autosomal dominant polycystic kidney disease (ADPKD) has highlighted the need to identify rapidly progressive patients. Kidney size/age and genotype have predictive power for renal outcomes, but their relative and additive value, plus associated trajectories of disease progression, are not well defined.METHODS The value of genotypic and/or kidney imaging data (Mayo Imaging Class; MIC) to predict the time to functional (end-stage kidney disease [ESKD] or decline in estimated glomerular filtration rate [eGFR]) or structural (increase in height-adjusted total kidney volume [htTKV]) outcomes were evaluated in a Mayo Clinic PKD1/PKD2 population, and eGFR and htTKV trajectories from 20–65 years of age were modeled and independently validated in similarly defined CRISP and HALT PKD patients.RESULTS Both genotypic and imaging groups strongly predicted ESKD and eGFR endpoints, with genotype improving the imaging predictions and vice versa; a multivariate model had strong discriminatory power (C-index = 0.845). However, imaging but not genotypic groups predicted htTKV growth, although more severe genotypic and imaging groups had larger kidneys at a young age. The trajectory of eGFR decline was linear from baseline in the most severe genotypic and imaging groups, but it was curvilinear in milder groups. Imaging class trajectories differentiated htTKV growth rates; severe classes had rapid early growth and large kidneys, but growth later slowed.CONCLUSION The value of imaging, genotypic, and combined data to identify rapidly progressive patients was demonstrated, and reference values for clinical trials were provided. Our data indicate that differences in kidney growth rates before adulthood significantly define patients with severe disease.FUNDING NIDDK grants: Mayo DK058816 and DK090728; CRISP DK056943, DK056956, DK056957, and DK056961; and HALT PKD DK062410, DK062408, DK062402, DK082230, DK062411, and DK062401.

Authors

Sravanthi Lavu, Lisa E. Vaughan, Sarah R. Senum, Timothy L. Kline, Arlene B. Chapman, Ronald D. Perrone, Michal Mrug, William E. Braun, Theodore I. Steinman, Frederic F. Rahbari-Oskoui, Godela M. Brosnahan, Kyongtae T. Bae, Douglas Landsittel, Fouad T. Chebib, Alan S.L. Yu, Vicente E. Torres, the HALT PKD and CRISP Study Investigators, Peter C. Harris

×

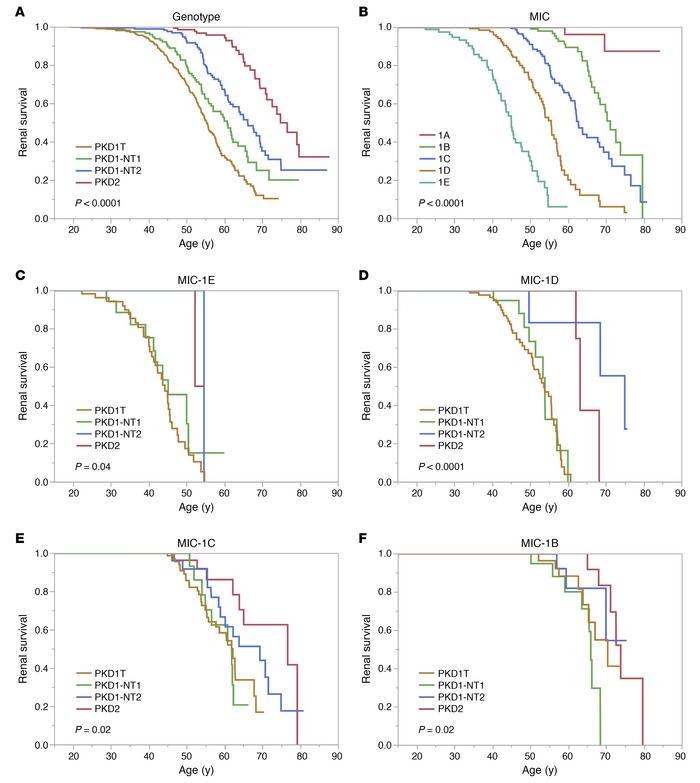

Figure 2

Unadjusted Kaplan-Meier renal survival analysis.

Options: View larger image (or click on image) Download as PowerPoint
Unadjusted Kaplan-Meier renal survival analysis.
(A and B) Unadjusted Ka...
(A and B) Unadjusted Kaplan-Meier renal survival analysis from birth (data shown from 15y) analyzing genotype (A) and Mayo Imaging Class (MIC; B), with P values shown. The median age at ESKD is: 55.3y, 60.8y, 66.2y, and 74.4y for PKD1T, PKD1NT1, PKD1NT2, and PKD2, respectively (A) (n = 1079, P < 0.0001); and 45.1y, 55.6y, 62.8y and 71.2y for MIC-1E to -1B, respectively, with less than 20% of MIC-1A patients experiencing ESKD (B) (n = 646, P < 0.0001). (C–F) Similar Kaplan-Meier renal survival analysis from birth analyzes the 4 MICs: MIC-1E (C), -1D (D), 1-C (E), and -1B (F), separated by the 4 genotypic groups. The median age at ESKD for the MIC-1E genotypic groups: PKD1T, PKD1NT1, and PKD1NT2 is 44.3y, 45.1y, and 54.5y, respectively, with less than 50% of PKD2 experiencing ESKD (C, n = 80; P = 0.04); for the MIC-1D genotypic groups, 53.7y, 53.9y, 74.9y, and 63.1y for PKD1T, PKD1NT1, PKD1NT2, and PKD2, respectively (D, n = 140, P < 0.0001); MIC-1C genotypic groups, 61.9y, 61.8y, 69.4y, and 76.6y for PKD1T, PKD1NT1, PKD1NT2, and PKD2, respectively (E, n = 198, P < 0.02); and MIC-1B genotypic groups, 70.3y, 66.0y, and 73.9y for PKD1T, PKD1NT1, and PKD2, respectively, with less than 50% of PKD1NT2 experiencing ESKD (F, n = 156, P < 0.02). Since very few MIC-1A patients reached ESKD (B), we did not plot this class divided by genotypic group.
